Pneumatic Sanders

Sanders 3", 5", 6" Dual Action, Vacuum & Triangle

T-7553 3" Mini Palm Grip DA Sander

The T-7553 is small, compact and easy to use. It features heavy-duty ball bearing construction, built-in regulator and a smooth powerful cutting action. The 3" Velcro pad makes for easy attachment of sanding disk. The 3/32" Orbit gives a fine finish for the most demanding work.

T-7555VAC 5" Palm Grip DA Sander/Vacuum Ready

T-7556VAC 6" Palm Grip DA Sander/Vacuum Ready

The T-7555/6VAC is a small, compact and easy to use. It features an adjustable exhaust, heavy-duty ball bearing construction, built-in regulator and a smooth powerful cutting action. The vinyl face pad makes for easy attachment of PSA sandpaper. The 3/16" orbit gives a fine finish and heavy cutting action for the most demanding work. The shroud has a vacuum hookup to pull dust away from the surface of your work.

T-7665 Detail Triangle Mini Jitterbug Sander

The T-7665 is small, compact and easy to use. It features heavy-duty ball bearing construction, built-in regulator and a smooth powerful cutting action. The vinyl face pad makes for easy attachment of PSA sandpaper. Pad size is 90x90x80mm. Triangular Pad allows use in corners and tight spots. The 1/8" Orbit gives a fine finish and heavy cutting action for the most demanding work. It can be used for sanding, polishing and scrubbing.

	T-7553	T-7555VAC	T-7556VAC	T-7665
Free Speed RPM	11,000	11,000	11,000	10,000
Pad Size	3"	5"	6"	90 X 90 X 80 mm
Weight	2.5 lbs.	2.5 lbs.	2.5 lbs.	1.5 lbs.
Height	4"	4"	4"	3 1/8"
Orbit Diameter	3/32"	3/16"	3/32"	1/8"
Spring Size	5/16" - 24	5/16" - 24	5/16" - 24	N/A
Air Inlet	90 PSI Max.	90 PSI Max.	90 PSI Max.	90 PSI Max.
Air Pressure	1/4" NPT	1/4" NPT	1/4" NPT	1/4" NPT

Palm Grip DA Sanders

All models come with vinyl faced PSA (pressure sensitive adhesive) pads.

T-7445 5" DA Sander

T-7446 6" DA Sander

	T-7445	T-7446
Free Speed RPM	6,000	6,000
Pad Size	5"	5"
Weight	2.2 lbs.	2.2 lbs.
Air Pressure	90 PSI Max.	90 PSI Max.

A great finishing sander. Smooth and quite, yet has a fast cutting action.

• Rear Exhaust
• Heavy duty ball bearing construction
• Paddle Lever
• Light and powerful

T-7556 (T-7555, T-7555B, T-7556, T-7556B)

6" DA Sander (5" & 6" Palm Grip DA Sanders)

Free Speed RPM	10,000
Pad Size	5" or 6"
Weight	2 lbs.
Orbit Diameter	3/16" or 3/32"
Spring Size	5/16 - 24
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

• T-7555 - 5" pad with 3/16" Orbit
• T-7555B - 5" Pad with 3/32" Orbit
• T-7556 - 6" Pad with 3/16" Orbit
• T-7556B - 6" Pad with 3/32" Orbit

OUR BEST DA SANDER - The T-9556 has an aluminum and steel rotor. Smooth, quite, low vibration, and great cutting action. Built for production.

• Adjustable exhaust
• Heavy duty ball bearing construction
• Paddle Lever
• Light and powerful
• Smooth cutting action
• Built in regulator
• Rear Exhaust

T-9556 (T-9555, T-9555B, T-9556, T-9556B)

6" Super Duty DA Sander

Free Speed RPM	10,000
Pad Size	6"
Weight	2.2 lbs.
Orbit Diameter	3/16"
Spring Size	5/16 - 24
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

• T-9555 - 5" pad with 3/16" Orbit
• T-9555B - 5" Pad with 3/32" Orbit
• T-9556 - 6" Pad with 3/16" Orbit
• T-9556B - 6" Pad with 3/32" Orbit

DA Sanders 2", 5", 6"

T-7211 2" Angle DA Sander

RPM	8,000
Pad Size	2"
Length	5"
Weight	1.5 lbs.
Hose Size	3/8"
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

Small compact size makes this tool a must whenever a finish sander is needed for working in tight spots.

• Regulator
• Full ball bearing construction
• Built-in silencer
• Balanced counter weight design for smooth operation

T-7511 2" Angle DA Sander

RPM	18,000
Pad Diameter	2"
Length	6 1/2"
Weight	1.25 lbs.
Air Pressure	90 PSI Max.

• Rear Exhaust
• Full ball bearing construction
• Designed for small finishing jobs

T-7311w/5 5" DA Sander

T-7311 6" DA Sander

RPM	10,000
Pad Size	5" - 6"
Length	8.5"
Weight	1.7 lbs.
Hose Size	3/8"
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

• Built-in Regulator
• 1/2" HP motor
• Full ball bearing construction
• Built-in silencer
• Balanced counter weight design
• Locking shaft for pad removal

Drum Sanders and Polishers 4"X4" Drum

T-7716DP 2500 RPM Drum Polisher

T-7716DS 4500 RPM Drum SanderM

This lightweight, rugged 1.0 horsepower sander/polisher is excellent for producing a uniform surface finish without leaving shadows or transition lines. The perfect tool for cleaning welds, roughing, deburring, glazing, brushing, blending, graining, polishing and finishing.

• All ball bearing construction
• Side handle for right or left hand operation
• Built-in regulator
• Hardened and ground spiral bevel gears
• 1 HP motor

RPM	2500/4500
Spindle	Size 1” keyed
Length	14”
Weight	6.35 lbs.
Air Inlet	1/4” NPT
Air Pressure	90 PSI Max.

T-7785 5" DA Sander

T-7786 6" DA Sander



RPM	10,000
Pad Size	5" - 6"
Length	8 3/4"
Weight	3 1/4 lbs.
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

• Built-in Regulator
• Built-in silencer
• Smooth performance
• Fast cutting dual action
• Our best DA Sander in this style

Smooth, quiet and reliable, the T-7786 & T-7785 have a fast cutting action with the least amount of vibration possible. Exhaust is through the handle and blows toward the air hose, not on you work.

Sanders, Jitterbug and High Speed

T-8865/T-8865V

Jitterbug Sander 3.75" x 4.25" PSA PAD or VELCRO

RPM	10,000
Pad Size	3 3/4" x 4 3/4"
	(110 x 100 mm)
Length	5"
Weight	1.5 lbs.
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

• Positive clips hold paper in place
• Rubber grips absorbs shock
• One hand operation
• 1/8" Orbit for fine work

Used for wet for dry sanding. Great for fiberglass, plastic, steel, aluminum, or wood. A must for every body shop and woodworking shop.

T-7765 Jitterbug Sander 3-2/3"x9"

RPM	14,000
Length	5"
Weight	1.5 lbs.
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

• Positive lock clips hold paper in place
• Rubber grip absorbs shock
• One hand operation
• 1/8" orbit for fine work

Used for wet for dry sanding. Great for fiberglass, plastic, steel, aluminum, or wood. A must for every body shop and woodworking shop.

T-7778 5" High Speed Sander

• Heavy duty ball bearing construction
• Light and powerful
• Built-in regulator
• Comes with three back up pads and a holding rod



Free Speed RPM	14,000
Weight	2.3 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.
Horsepower	.5

Accessories (standard with the T-7778)
• 7776 3" Backup Pad
• 777827 4-1/2" BU Pad
• 777829 Holding Rod
• 777814 Pad nut
• 777828 5" BU Pad
(accessories not to scale)

3" Mini Polisher/Sander

T-7888P

RPM	2,500
Pad Size	3"
Horsepower	.3
Length	5 1/2"
Weight	1.32 lbs.
Spindle Third	1/4 NPT
Air Pressure	90 PSI Max.
Horsepower	.5

• Includes 3" Foam back Velcro pad (PSA available)
• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber etc.
• Rubber comfort grip
• Ideal for sanding and polishing

Tay.755344

3-1/2" Polishing Pad for the T-7888P. For use with Tay.7888P50V Velcro Pad.

Sanders & Polishers (7" Wet & 7" Vertical)

T-7716W 7" Wet Angle Sander

• All ball bearing construction
• Side handle for right or lift operation
• Hardened and ground spiral bevel gears

T-7718P 7" Vertical Polisher

T-7718 7" Vertical Sander

Both the T-7718 & T-7718P are available with a short muffler side handle. Add SM after the model #.



Same great tool as the T-7718 but with a lower gear ratio. RPM is 2,000, the perfect polishing speed. Comes complete with a rubber back up pad our T-7470A and the T-7472 Wool Polishing Pad. A great tool for buffing and polishing paint, plastic, metal and wool.

• Built-in Regulator
• Ball bearing construction
• Lightweight aluminum housing
• Rugged 1 HP motor

	T-7716W	T-7718	T-7718P
Pad Size	N/A	7"	7"
RPM	4,500	4,000	2,000
Spindle Size	5/8" - 11	5/8" - 11	5/8" - 11
Length	16"	8 1/4"	8 1/4"
Weight	4.62 lbs.	5.25 lbs.	5.25 lbs.
Air Inlet	1/4" NPT	1/4" NPT	1/4" NPT
Air Pressure	90 PSI Max.	90 PSI Max.	90 PSI Max.

Backup pad included (our T-7470A)

T-7265 Finger Sander

This unique sander replicates the human finger in its orbital motion 4 "finger" pads.

RPM	16,000
Length	7"
Weight	1.5 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

T-7315 Straight Line Sander

• Proven twin piston design
• Quick action sandpaper clamps
• Exceptionally quiet
• Long life cylinder liners and racks
• Lightweight and easy to use

Strokes per min.	3,000
Pad Size	2 3/4" X 17 1/2"
Weight	6.25 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.
Hose Size	3/8" ID

The T-7315 removes material form large areas with ease. The synchronized dual pistons give a smooth action that reduces operator fatigue

5" & 7" Angle Sander

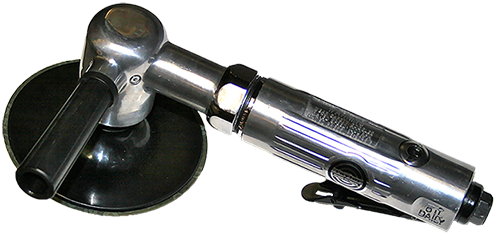

T-7815A 5" Angle Sander

The T-7815A features heavy duty alloy steel gears, safety lock off lever, lightweight aluminum housing, built in regulator and convenient side handle. Rear exhaust.

RPM	6,000
Pad Size	5"
Horsepower	.8
Length	9.7
Weight	2.9 lbs.
Air Pressure	90 PSI Max.
Spindle Size	5/8"-11

T-9916 7" Angle Sander

T-9916P 7" Angle Polisher

Same great tool as the T-9916 but with a lower gear ratio. RPM is 2,500, the perfect polishing speed. Comes complete with a rubber backup pad (our T-7470A) and the T-7472 Wool Polishing Pad.

• All ball bearing construction
• Side handle for right or left handle operation
• Built-in regulator
• Hardened and ground spiral bevel gears
• 1.3 HP Motor
• Rear exhaust

This Lightweight, rugged 1.3 horsepower sander is an excellent for shipping and contouring patches, sanding body filler and for heavy rust removal. Comes complete with a rubber backup pad - T-7470A. Auxiliary Handle rotates for left or right handed use, or straight up!

	T-9916P	T-9916
RPM	2,500	4,500
Spindle Size	5/8"-11	5/8"-11
Length	16"	16"
Weight	4 5/8"	4 5/8"
Air Inlet	1/4" NPT	1/4" NPT
Air Pressure	90 PSI Max.	90 PSI Max.

8" Orbital and 7" Angle Sanders

T-7777 8" Orbital Sander

• Built-in regulator
• All ball bearing construction
• Insulated handle
• .5 HP motor provides plenty of power

RPM	900
Pad Size	8"
Height	4 5/8"
Weight	4.25"
Air Pressure	90 PSI Max.

T-7716

T-7716P (7" Angle Polisher)

This lightweight, rugged 1.0 horsepower sander is excellent for shaping and contouring patches, sanding body filler and for heavy removal. Comes complete with a foam 7" Velcro Pad - T-881647V. Sanders comes with blue grip, polishers with red. Rear exhaust.

RPM	5,500
Spindle Size	5/8"-11
Length	16"
Weight	4.62 lbs.
Air Inlet	1/4 NPT
Air Pressure	90 PSI Max.

T-8816 & T-8816P 7" Angle Sander & Polisher

T-8816 7" Angle Sander

This lightweight, rugged 1.0 Horsepower sander is excellent for shaping and contouring patches, body filler and for heavy rust removal. Comes complete with a rubber backup pad - our T-7470A.

Same great tool as the T-7716 but with a lower gear ratio. RPM is 2,500, the perfect polishing speed. Comes complete with a rubber backup pad (our T-7470A) and the T-7472 Wool Polishing Pad.

• All ball bearing construction
• Side handle for right or left handed operation
• Built-in regulator
• Hardened and ground spiral
• 1 HP motor

	T-8816	T-8816P
RPM	5,500	2,500
Spindle Size	5/8"-11	5/8"-11
Length	16"	16"
Weight	4 5/8"	4 5/8"
Air Inlet	1/4" NPT	1/4" NPT
Air Pressure	90 PSI Max	90 PSI Max

T-7470A

7" Rubber Back Up Pad for the T-8816/P, T-9916P, T7716P, & T7718/P. 5/8"-11 Female Thread. 6,600 RPM Max. (Sold Separately)

T-7472

7 1/2" Wood Polisher Pad for the T-8816/P, T-9916P, T7716P, & T7718/P. (Sold Separately)

Belt Sanders

T-7060 1/4" x 13" Belt Sander

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7010 3/8" x 13" Belt Sander

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7012 1/2" x 24" Belt Sander

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7020 3/4" x 20-1/2" Belt Sander

Lightweight Belt Sander is built for heavy use. Exhaust muffler keeps. dBAs in the low 80's.

• Rear Exhaust
• For use on steel, wood, plastic, rubber.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7030 1-3/16" x 21-1/4" Belt Sander

Lightweight Belt Sander is built for heavy use. Exhaust muffler keeps. dBAs in the low 80's. Works well in corners and on irregular shapes.

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

	T-7060	T-7010	T-7012	T-7030	T-7020
RPM	16,000	16,000	16,000	12,000	16,000
Belt Size	1/4" x 13"	3/8" x 13"	1/2" x 24"	1 3/16" x 21 1/4"	3/4" x 20 1/2"
Horsepower	.37	.37	.37	.7	.45
Length	15 1/2"	16 1/2"	21 1/2"	19 1/2"	18 1/2"
Weight	1.7 lbs.	1.7 lbs.	1.7 lbs.	4.9 lbs.	3.1 lbs.
Air Pressure	90 PSI Max	90 PSI Max	90 PSI Max	90 PSI Max	90 PSI Max

Economy Belt Sanders

The top three tools have locking mechanism when arms are retracted, to aid in replacement of belts. Simply push on nose of tool until you hear the "click". Push small lever on side of arm to re-extend.

T-7010AN 3/8" x 13" Economy Belt Sander

These are the "Chevy's". Great tools without the bells and whistles.

We have belts available for all of our belt sanders in grits of 60, 80, 100 and 120.

• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7012A 1/2" x 24" Economy Belt Sander

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7020A 3/4 x 20-1/2" Economy Belt Sander

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes

T-7040A 2.36" x 10.23"(60 x 260 mm) Economy Belt Sander

This unique sander has many uses. The roller on the back of the tool acts as a pivot point so that more or less pressure can be exerted. Side guide can be used for straight passes. Boss on right of tool for vacuum hookup.

	T-7010AN	T-7012A	T-7020A	T-7040A
RPM	16,000	16,000	16,000	7,000
Belt Size	3/8" x 13"	1/2" x 24"	3/4" x 20-1/2"	2.36" x 10.23"
				(60 x 260 mm)
Horsepower	.37	.37	.45	.37
Length	11"	17"	14"	7"
Weight	1.7 lbs.	1.7 lbs.	3.1 lbs.	3 lbs.
Air Pressure	90 PSI Max	90 PSI Max	90 PSI Max	90 PSI Max

3/4" x 20-1/2" Belt Sander

T-8020G 3/4" x 20-1/2" Belt Sander. For use with thicker surface prep belts.

Lightweight Belt Sander is built for heavy use. Exhaust muffler keeps dBA's in the low 80's.

• Rear Exhaust
• For use on steel, aluminum, wood, plastic, rubber, etc.
• Adjustable Head
• Includes 2 belts
• Works well in corners and on irregular shapes
• Side door - for easy access

RPM	16,000
Belt size	3/4" X 20 1/2"
HP	.45
Length	18 1/2"
Weight	18 1/2"
Air Pressure	90 PSI Max.

T-7050C

2" Shredder with Coarse Carbide coated wheel

Wheels available in 16 and 24 Grit as a T-7050C16 and T-7050c24

This unique shredder has many uses. The roller on the back of the tool acts as a pivot point so that more or less pressure can be applied. Carbide wheel cuts fiberglass, concrete, wood, plastic and many more other materials.

RPM	7,000
Wheel size	2" dia. X 2 1/4" width
Horsepower	.37
Length	7"
Weight	3 lbs.
Air pressure	90 PSI Max.

7” Vertical Polisher

T-8818P 7” Vertical Polisher 2,500 RPM

RPM is 2500, the perfect polishing speed. Comes complete with a plastic backup pad, pad nut and wrench. A great tool for buffing and polishing paint, plastic, metal and wood. Can be used with brushes to clean automotive carpets.

• Auxilliary handle fits right and left side
• All Ball bearing construction
• Lightweight aluminum housing
• Exhaust muffler through handle
• Plenty of power - double reduction gear system

RPM	2500
Pad	Size 7”
Length	5-1/2”
Weight	2.6 lbs.
Air Pressure	90 PSI Max.
Spindle Thrd	3/8 - 24

COMES WITH ADAPTER TO CONVERT TO 5/8 - 11 MALE THREAD. ADAPTER ALSO HAS 5/16 - 24 FEMALE THREAD.

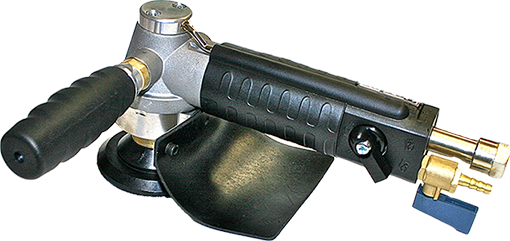

T-9913WS 3” Angle Water Polisher

T-9913WS 3” Angle Water Polisher

RPM	4500
Spindle	Size 5/8”-11
Length	9.06”
Weight	4 lbs.
Air Inlet	1/4” NPT
Air Pressure	90 PSI Max.

The T-9913WS is top of the line Air Polisher for Fabricators. Designed for continuous production use with maximum performance in Stone Shops. A very durable tool when used in adverse conditions just remember to oil the tool through the air inlet and run for a secound or two to coat all internal parts after use. Centrally fed water distribution provides quality finishes.

Comes complete with 3” velcro pad, air hose, water feed hose with valve, splash guard side handle and wrench.

Pads - Sanding and polishing

T-7415

5" DA Pad - 5/16-24 for:
• T-7311W5
• T-7445
• T-7785
Has vinyl face for pressure sensitive adhesive abrasives

T-7415V

5" DA Pad - 5/16-24 for:
• T-7311W5
• T-7445
• T-7785
Has Velcro face for abrasives with the hook and loop system.

T-755545

5" DA Pad - 5/16-24 for use with:
• T-7555
• T-9555
• T-7311
• T-7445
• T-7785
Thin pad for use with PSA abrasives.

T-7415VAC

5" DA Pad - 5/16-24 for use with:
• T-7555VAC
Spindle size - 5/16-24 PSA vinyl face.

T-7415VV

5" DA Pad for use with:
• T-7555VAC
Spindle size - 5/16-24 PSA vinyl face.

T-7416

6" DA Pad - 5/16-24 for use with:
• T-7311
• T-7446
• T-7786
PSA - Has vinyl face for pressure sensitive adhesive abrasives.

T-7416V

6" DA Pad - 5/16-24 for use with:
• T-7311
• T-7446
• T-7786
Has Velcro face for abrasives with the hook and loop system.

T-755546

6" DA Pad - 5/16-24 for use with:
• T-7556
• T-9556
• T-7311
• T-7446
• T-7786
Has Velcro face for abrasives with the hook and loop system.

T-7416VAC

6" DA Pad - 5/16-24 for use with:
• T-7555VAC
Spindle size - 5/16-24 PSA vinyl face.

T-7416VV

6" DA Pad - 5/16-24 for use with:
• T-7555VAC
Spindle size - 5/16-24 vinyl face.

Tay.755338

3" DA Pad - 5/16-24 for use with:
• T-7553.
PSA

Tay.755338V

3" DA Pad - 5/16-24 for use with:
• T-7553
Velcro

Tay.755344

3-1/2" Polishing Pad for use with:
• T-755338V
Velcro Pad

Tay.721128 & Tay.721128V

2" DA Pads for use with:
• T-7211 (PSA) or Velcro 1/4-20 thread

Tay.751138 & Tay.751138V

2" DA Pads for use with:
• T-7211 PSA or Velcro 6mm thread
ALSO available with a 5/16-24 thread and PSA as T-7412

T-881647V

7" Velcro Poly Pad for use with:
• T-7716
• T-7718
• T-7716/p
5/8-11 Female thread 5500 RPM Max.

T-7470A

7" Rubber Back Up Pad for use with:
• T-7716
• T-7718
• T-7716/p
5/8-11 Female thread 6600 RPM Max. ALSO available T-7471B Medium Flex for T-7707 8600 RPM

T-7472

7 1/2" Wool Polishing pad for use with:
• T-7716P
• T-7718P
