Screwdrivers

T-2420EX

Push to Start, Auto Start & Auto Shut off Screwdrivers

• Reversible
• Rear Exhaust
• Accurate Torque
• Adjustable Torque

RPM	800
Hex Drive	3.5 mm
Clutch Type	Internally adjustable
Torque Range	3.11 to 10.67 in. lbs.
Length	7 1/2"
Weight	.8 lbs.

T-2430EX

Push to start. Auto start & Auto Shut off Screwdriver

• Reversible
• Rear Exhaust
• Accurate Torque
• Adjustable Torque

RPM	1,000
Hex Drive	1/4"
Clutch Type	Internally adjustable
Torque Range	10.67 to 19.56 in. lbs.
Length	10 1/4"
Weight	1.6 lbs.

Manual torque adjustment - tighten or loosen internal spring

T-2440EX

Push to start. Auto start & Auto Shut off Screwdriver

RPM	600
Hex Drive	1/4"
Clutch Type	Internally adjustable
Torque Range	17.78 to 42.67 in. lbs.
Length	11.25
Weight	2.25

T-7761 1/4" Straight Handle Screwdriver

RPM	1,600
Hex Drive	1/4" Female
Max. Torque Soft Pull	30 in. lbs.
Max. Torque Hard Slam	70 in. lbs.
Length	8 7/8"
Weight	1.25 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

• Reversible
• Accurate Torque
• Internally adjustable clutch
• Adjustable Torque

T-7761AH 1/4" Right Angle Screwdriver

RPM	1,500
Hex Drive	1/4" Female
Max. Torque Soft Pull	30 in. lbs.
Max. Torque Hard Slam	70 in. lbs.
Length	10"
Weight	1.8 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

• Reversible
• Accurate Torque
• Internally adjustable clutch
• Rear Exhaust

T-7744S, 1/4"

Free Speed RPM	9,000
Max. Torque	160 ft. lbs.
Weight	3 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

Impacting clutch provides plenty of torque.

Convenient forward and reverse button is located just above the trigger.

Quick change bit holder-pull back to release bits.

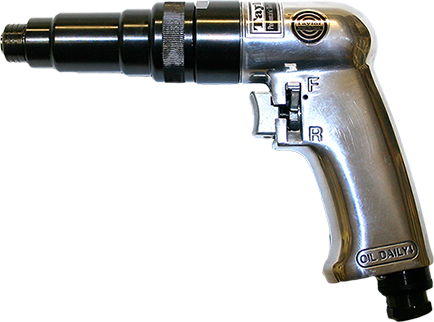

T-7763 1/4" Screwdriver

RPM	1,800
Hex Drive	1/4"
Torque	45-115 in. lbs.
Length	7"
Weight	2.5 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

• Reversible
• Ergonomic Handle
• Internally adjustable clutch
• Rear Exhaust

This pistol grip screwdriver is light and comfortable. Rear exhaust directs air away from the operator and muffles the exhaust noise. Location of reverse lever makes changing direction easy.

T-7766 Positive Clutch Screwdriver

RPM	1,800
Torque	115 in. lbs.
Hex Drive	1/4"
HP	.5
Weight	2.25 lbs.
Air Pressure	90 PSI

• Precision bearings and gears
• Rear Exhaust
• Reversible
• Lightweight

This pistol grip screwdriver is light and comfortable. Rear exhaust directs air away from the operator and muffles the exhaust noise. Location of reverse lever makes changing directions easy.

T-7766HR Positive Clutch Externally Adjustable 1/4"

RPM	800
Torque	45 to 115 in. lbs.
Hex Drive	1/4"
HP	.5
Weight	3 lbs.

• Reversible
• Ergonomic Handle
• Externally adjustable clutch (pull and twist outside housing)
• Rear Exhaust

T-7763S 1/4" Straight Handle Screwdriver

RPM	800
Hex Drive	1/4"
Torque	45 to 115 in. lbs.
Length	11"
Weight	3 2/3 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

Lightweight and ease to use. The T-7763S is strong and powerful. Bail Hanger, rear exhaust, reversible, internally adjustable.

The torque on the T-7763, T-7763EX, T-7763S and T-7764EX can be further changed by switching the springs in the clutch.

776337A, 20-90 in. lbs.

776337B 45-115 in. lbs.

776337C 45-145 in. lbs.

T-7763EX 1/4" Externally Adjustable Clutch Screwdriver

• Reversible
• Ergonomic Handle
• Externally adjustable clutch
• Rear Exhaust

RPM	1,800
Hex Drive	1/4"
Torque	45 to 145 in. lbs.
Weight	3 lbs.
HP	.5

This pistol grip screwdriver is light and comfortable. Rear exhaust directs air away from the operator and muffles the exhaust noise. Location of reverse lever makes changing directions easy.

T-7764EX 1/4" Externally Adjustable Clutch Screw Driver

RPM	800
Hex Drive	1/4"
Torque	45 to 115 in. lbs.
Weight	3.5 lbs.
HP	.5

• Reversible
• Ergonomic Handle
• Externally adjustable clutch
• Rear Exhaust

This pistol grip screwdriver is light and comfortable. Rear exhaust directs air away from the operator and muffles the exhaust noise. Location of reverse lever makes changing direction easy.

The torque on the T-7763, T-7763EX, T-7763S and T-7764EX can be further changed by switching the springs in the clutch.

776337A, 20-90 in. lbs.

776337B, 45-115 in. lbs.

776337C, 45-145 in. lbs.

Straight Screwdriver

T-8863S

• Convenient 1/4" quick change bit holder
• Lightweight aluminum handle
• Easy to use forward and reverse lever
• Hanger included

RPM	8,500
Max. Torque	175 in. lbs.
Bit Holder	1/4"
Length	8.27"
Weight	2.51 lbs.
Air Pressure	90 PSI Max.
Air Inlet	1/4" NPT
