Rivnut Tool and Tapping Tool

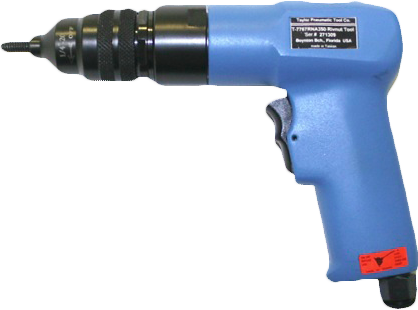

Rivnut Tool
T-7767RNA350
T-7767RNA600 Rivnut Tool
Tool comes standard with one hand, either 6-32, 8-32, 10-24, 1/4-20, 5/16-18, M3, M4, M5, M6, OR M8. Additional heads available separately.
- 1/2 HP motor and double reduction gearing for exceptional power.
- Convenient forward and reverse trigger for one hand directional changes.
- Teasing throttle for precise control.
- Quick change head for different sizes of rivnuts
- Model T-7767RNA350 is used for sizes #8-32 and M4 to 5/16-18 and M8
- Model T-7767RNA600 is used for sizes #6-32 and M3 to 1/4-20 and M6
| Model# | T-7767RNA350 | T-7767RNA600 |
|---|---|---|
| Length | 7-3/8" | 7-3/8" |
| Height | 6" | 6" |
| Weight | 2.12 lbs | 2.12 lbs |
| Air Pressure | 90 PSI Max. | 90 PSI Max. |
| RPM | 350 | 600 |
| Range | 8-32, M4 to 5/16-18, M8 | 6-32, M3 to 1/4-20, M6 |
M3 - M12 Tapping Tool
T-9800
| Tapping Capacity | M3-M12 (Aluminum) |
|---|---|
| M3-M8 (Steel) | |
| Free Speed | 150 RPM |
| Length | 7.87" |
| Weight | 4.10 lbs. |
| Air Pressure | 90 PSI Max. |
Smooth, quite and powerful
REVERSIBLE
