Drills

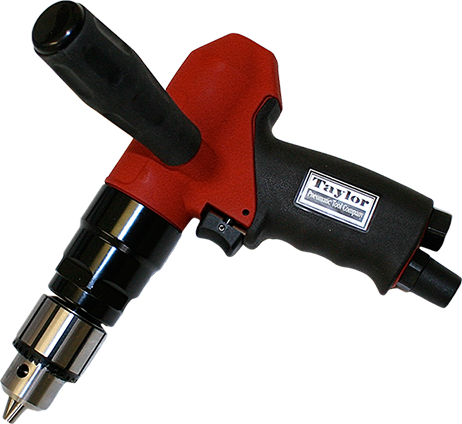

3/8" 2 Speed Drill - 4,000 RPM

T-5540SPC with 3/8" Precision Chuck

T-5540SPC, T-5540K
RPM	4,000
Drill Chuck Size	3/8"
Weight	2.8 lbs.
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.
HP	.7

The T-5540 precision 3/8" non reversing drill features smooth two speed throttle, strong .7 HP motor, side handle for right or left hand use, quite rear exhaust and roller bearings in the gears. Choose form two drills chuck options.

Drills 3/8" & 1/2"

T-7454HPR .75 HP Heavy Duty 3/8" Reversible Drill

• Teasing throttle
• Exhausts through bottom of handle
• Convenient forward and reverse lever
• Built to last
Plenty of power for those tough drilling applications.

RPM	2,600
Length	7 1/2"
Weight	3 lbs
Air Pressure	90 PSI Max.
Air Inlet	1/4" NPT

T-7701D 3/8" Straight Drill 2500 RPM

Useful for drilling, grinding and wire brushing. The T-7701D's powerful motor and planetary gear system provide years of trouble free service.

• Lightweight
• Easy to maneuver
• Built-in regulator

RPM	2,500
Drill Chuck	3/8"
Weight	2 3/4 lbs
Length	7 3/4"
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.
Hose Size	3/8" ID

T-7757D 3/8" Straight High Speed

Compact to work with in confined spaces. The T-7757D cannot be damaged by overloading. Drill, brush, hone or deburr without hazard of electric shock. (Not for use with cast wheels or accessories nor rated for 25,000 RPM.)

• Direct drive
• Rear exhaust
• Full ball bearing construction
• Powerful .5 HP motor
• Lock off lever

T-7768 Heavy Duty 3/8" Non Reversible Drill

T-7768R Heavy Duty 3/8" Reversible Drill

Quality drills for production use. The T7768R has a convenient forward and reverse lever, rear exhaust and all ball bearing construction. Comes standard with a range of 0 to 3/8" and superior holding power. Variable speed and three gear system make this our best 3/8" drill. T-7768 is the same great tool in a forward only tool.

T-7768 - T-7768R
RPM	1,800
HP	.5
Weight	3 lbs.
Length	7"
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

T-7768HR 1/2" Rev. Drill 800 RPM

T-7768HRK 1/2" Rev. Drill with Keyless Chuck 800 RPM

A great 1/2" production drill with HiTorque Double reduction gears

RPM	800
HP	.5
Weight	3 lbs.
Length	7 1/2"
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

3/8" Drills

T-7788N 2,500 RPM 3/8" Drill (non reversing)

RPM	2,500
Drill Chuck	3/8"
HP	.5
Weight	3 lbs.
Length	7 1/2"
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

• Quality hardened gears
• Rear Exhaust
• Variable Speed
• Lightweight aluminum handle

The T-7788N and T-7788FK are great for those tough jobs that need extra power. Excellent tools for honing, reaming, wire brushing, hole sawing and heavy duty drilling.

T-7788R 3/8" Reversible Drill 2,500 RPM

T-7788FK 3/8" Reversible Drill with Keyless Chuck (non reversing)

• Quality hardened gears
• Rear Exhaust
• Variable Speed
• Lightweight aluminum handle

RPM	2,500
Drill Chuck	3/8"
Horsepower	.5
Length	7"
Weight	2 lbs
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

The T-7788R and T-7788K are great for those tough jobs that need extra power. Excellent tools for honing, reaming, wire brushing, hole sawing and heavy duty drilling. Plus they have reverse.

Drills 3/8", 1/2" & 5/8"

T-7787RN 3/8" Reversible Angle Drill

• Quality hardened gears
• Rear exhaust
• Variable speed
• Forward and reverse
• Angle head reaches into tight areas

The prefect tool for working in confined areas. Variable speed lever gives you a precise speed control. Plenty of power for the tough jobs.

RPM	1,400
Drill Chuck	3/8"
Horsepower	.5
Length	8 1/4"
Weight	2 lbs
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

T-7788HR 1/2" Reversible Drill

T-7788HRK 1/2" Reversible Drill with keyless Chuck



• Quality hardened gears
• Rear Exhaust
• Variable Speed
• Lightweight aluminum handles
• Convenient forward and reverse lever
• Complete with side handle that rotates 360°

Same great tool as the T-7788HR but with a heavy duty keyless chuck

RPM	500
Drill Chuck	1/2"
Horsepower	.5
Length	8 3/4"
Weight	3.50 lbs
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

T-9988HRS 5/8" Reversible Drill

• Heavy Duty 5/8" Drill
• Plenty of power
• Side Handle

RPM	1,000
Drill Chuck	5/8"
Horsepower	2
Length	15"
Weight	10.12 lbs
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

1/4" Aircraft Drills

T-7888 with 1/4" Standard Chuck

T-7888KC with 1/4" Composite Keyless Chuck

T-78881B with 1/4" Jacobs 1B Chuck

T-7888MK with 1/4" Metal Keyless Chuck

T-7888, T-7888KC, T-78881B, T-7888MK
RPM	2,800
Drill Chuck	1/4"
Weight	1.25 lbs
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

T-7888A with 1/4" Standard Chuck

T-7888AKC with 1/4" Composite Keyless Chuck

T-7888A1B with 1/4" Jacobs 1B Chuck

T-7888AMK with 1/4" Metal Keyless Chuck

T-7888A, T-7888AKC, T-7888A1B, T-7888AMK
RPM	4,500
Drill Chuck	1/4"
Weight	1.25 lbs
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.

1/4" Aircraft Drills

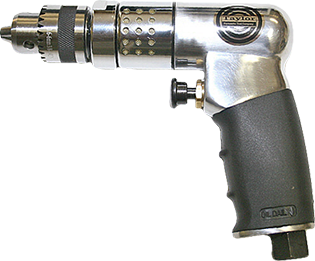

T-9888 1/4" Variable Speed Mini Palm Drill (non-reversible)

The T-9888 is a quality 1/4" drill with the teasing throttle control you need. Multi directional exhaust cover channels exhaust away from user. Quite operation makes this the perfect 1/4" Palm Drill. Shown with precision 1/4" chuck. Also available with 1/4" composite keyless chuck as T-9888K, with 1/4" Metal Keyless chuck as T-9888MK and with 1/4" Hi-Precision geared a chuck as T-9888SPC.

T-9888-C 1/4" Special Precision Chuck & Key

T-9888-KC 1/4" Composite Keyless Chuck

T-9888-MCK 1/4" Metal Keyless Chuck

T-9888-SPC 1/4" Special Hi-Precision Chuck

T-7922 Hose Swivel - 1/4" NPT

T-7922R Regulation Multi Position 1/4" NPT

T-5710 Brass Regulation 1/4" NPT

T-5711 Brass Regulator 1/4" NPT

T-9888R is a quality 1/4" drill with the same teasing throttle convenient reversing lever. Multi directional exhaust cover channels exhaust away form the user. Quite and comfortable, the cushioned grip and quiet operation makes this the perfect 1/4" Palm Drill. Shown with precision 1/4" chuck. Also available with 1/4" composite keyless chuck as T-9888RK and with 1/4" Hi-Precision geared chuck as T-9888RSPC.

T-9754AT Pancake Angle Drill Attachment

Attaches to your drill. Allows access to those hard to reach areas. 1/4" chucking shank. 2 7/16" long and 7/16" thick. Accepts 1/4-28" drill bits and accessories.

Model	RPM	Drill Chuck	HP	Length	Weight	Air Inlet	Air Pressure
T-9888	2,700	1/4"	.3	6.38"	1.54 lbs.	1/4" NPT	90 PSI Max.
T-9888R	2,7000	1/4"	.3	6.38"	1.54 lbs.	1/4" NPT	90 PSI Max.

1/4-28 Air Craft Drill Motors

The Taylor 1/4-28 Drill Motors shown here give a wide range of use for tight spots encountered in aircraft manufacturing and any type of production drilling situation

T-9750-C 1/8" Drill Chuck, Key and adapter - Fits any 1/4-28 threaded spindle with the use of our adapter form tapered shaft (inside chuck) to 1/4-28 thread.

T-9750

T-9751

T-9750EX

T-9753

T-9754

#### Quality Air Tools - Affordable Prices ####

Taylor Pneumatic now has the five tools shown above in stock - the 90°, 45°, 90° extender, 360°, and the pancake. All five accept 1/4-28 industry standard threaded drill bits. Grease fittings in heads and gear case enable proper lubrication. Use our T-1010 mini grease gun (see page 54) for grease fittings. Angle housings made form solid stock. Smooth quiet operation. Rear Exhaust. Use caution when tightening drill bits. Overtightening can cause damage to gears.

Model	RPM	Thread size	HP	Length	Weight	Air Inlet	Air Pressure
T-9750EX	2,800	1/4-28	.33	13 1/4"	1.8 lbs	1/4" NPT	90 PSI Max.
T-9750	2,800	1/4-28	.33	10"	1.6 lbs	1/4" NPT	90 PSI Max.
T-9751	2,800	1/4-28	.33	10"	1.6 lbs	1/4" NPT	90 PSI Max.
T-9753	2,800	1/4-28	.33	10 3/4"	1.98 lbs	1/4" NPT	90 PSI Max.
T-9754	2,800	1/4-28	.33	10 1/4"	1.9 lbs	1/4" NPT	90 PSI Max.

1/4-28 Aircraft Drill Motors & Polisher

The TAYLOR 1/4-28 & 5/16-24 Drill Motors shown here give a wide range of use for tight spots encountered in aircraft manufacturing and any type of production drilling or buffing situation.

T-9850 1/4-28 Aircraft Drill Motor

T-9870 1/4-28 Aircraft Drill Motor & 1/4” Collet

T-9890 5/16-24 Threaded Collet Aircraft Drill Motor & 1/4” Collet

T-9750-C 1/8” Drill Chuck, Key and Adapter - Fits any 1/4-28 threaded spindle with the use of our adapter from tapered shaft (inside chuck) to 1/4-28 thread.

Optional
• 755338 3” Pad PSA
• 755338V 3” Pad Velcro
• 755344 3-1/2” Polishing Pad

Model	RPM	Thread size	HP	Length	Weight	Air Inlet	Air Pressure
T-9850	3,000	1/4-28	.6	9.75”	2.10 lbs	1/4”NPT	90 PSI max.
T-9870	3,000	1/4-28	.6	9.75”	2.10 lbs	1/4”NPT	90 PSI max.
T-9890	3,000	5/16-24	.6	9.75”	2.10 lbs	1/4”NPT	90 PSI max.
