Saws

T-7702 Reciprocating Mini Saw

• Lightweight
• Adjustable guard for depth of cut
• Built-in regulator

Strokes per min.	10,000
Stroke	1/4"
Width of cut	7/32"
Max. Steel Thickness	18 gauge
Length	7 1/8"
Weight	1.37
Air Inlet	1/4" NPT
Air Pressure	90 PSI Max.
Hose Size	3/8" ID
Blades	3.5 X 14, 18, 24 & 32 TPI

Small and easy to use, the T-7702 cuts straight and curved shapes. Cuts aluminum, mild steel, plastic and fiberglass with ease. Comes with two blades (24 & 32 TPI).

Order extra blades in packs of 10pcs, part#:

• T-770214 (14TPI)
• T-770218 (18TPI)
• T-770224 (24TPI)
• T-770232 (32TPI)

4” Circular Saw

T-7722 4” Circular Saw

The T-7722 provides the opportunity to use a circular saw in an environment too dangerous for electric tools. Use outdoors in wet conditions and on job sites near water. Cut fiberglass, wood, steel, aluminum, tile and concrete.

RPM	8000
Blade	Size 4”
Size	4” x 20mm X 0.80”
Weight	2.65 lbs.
Air Pressure	90 PSI Max.
Air inlet	1/4” NPT
Length	9-1/16”

• Adjustable depth and angle guide.
• Blade guard
• Safety throttle
• Uses blades rated above 8500 RPM

T-7722CT 4” Carbide Tipped Blade - 40 teeth

T-7722DB 4” Diamond Blade - 8 teeth

T-8802A Heavy Duty Reciprocating Saw

Strokes per min.	0 to 1,200
Stroke Length	1 3/4"
Length	18.1"
Weight	6.2 lbs.
Height	5 1/4"
Width	1 5/16"
Air Inlet	1/4" NPT

Includes hose swivel, carrying case and a selection of blades. Shank is 1/2" - blade 3/4".

The T-8802A has variable speed, standard sawsall blades and has double pistons that produce plenty of power. Stroke length gives added blade life. Designed for heavy duty use in ship yards, factories, refineries for manufacturing and repair applications.

T-9902 Vibration Reduced Saw (9500 SPM)

SPM	9,500
Stroke Length	3/4"
Length	11 3/4"
Weight	1.2 lbs.
Air Pressure	90 PSI Max.
Blades	5.5" X 18, 24, 32 TPI

Blades	T-990218	T-990224	T-990232

Will also use	T-770214	T-770218	T-770224	T-770232

Patented vibration and noise reduced saw cuts steel, aluminum, stainless steel, wood, plastic and fiberglass with ease. Comes with the T-7922 hose swivel and safety lock off lever. Lightweight and powerful cutting action make this a must tool. Will easily cut wooden 2 X 4's. The beauty of this saw is the 3/4" stroke, which uses more of the teeth on each stroke. Adjustable blade guard. Comes with three blades.

7 1/4" Circular Saw

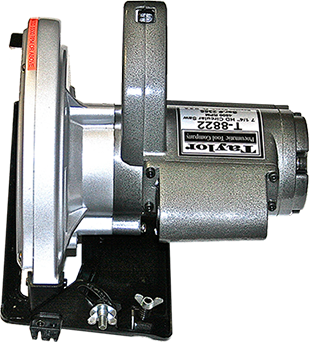

T-8822 7 1/4" Circular Saw

The T-8822 provides the opportunity to use a circular saw in an environment to dangerous for electric tools. Use outdoors in wet condition and on job sites near water. Powerful motor makes this tool perform as few can.

RPM	4,500
Blade Size	7 1/4"
Size	11.5" X 9.125" X 9.5"
Weight	10.5 lbs
Air Pressure	90 PSI Max.
Fool tilting angle	45°
Air Inlet	1/4" NPT

• Adjustable depth and angle guide.
• Blade guard
• Two stage safety throttle
• Includes guide (not shown)
• Uses blades rated above 5,500 RPM
